Configuration

Adding a device

Add the integration once for every Synology router and every access point. Each becomes its own device in Home Assistant, named after its model (with the end of the serial number when two of the same model are set up). Their client lists are combined automatically, so a client on an access point is shown there.

Field Meaning
Host Address or host name of the router or access point.
Port Leave empty for SRM's default: 8001 for HTTPS, 8000 for HTTP.
Use HTTPS Recommended: the password travels encrypted.
Check the certificate Shows the certificate's fingerprint for you to confirm, then trusts exactly that certificate (see below). Turn off only if you accept that anyone in your network could read the password.

Each device is recognised by its serial number. Whether it runs as router or as access point is read at every start, so switching the operation mode in SRM needs no reconfiguration.

Certificate

SRM uses a certificate that browsers do not trust by default, so Home Assistant shows its SHA-256 fingerprint once and then trusts exactly that certificate. To check that you are talking to your device and not to something in between:

  1. Open the address shown in the dialog (for example https://192.168.1.1:8001) in a browser.
  2. Click the padlock or the warning next to the address and open the certificate details.
  3. Compare the SHA-256 fingerprint there with the one in the dialog. Both list the same pairs of characters; continue only if they match.

When the certificate changes later, for example after a renewal, Home Assistant asks again and shows the new fingerprint.

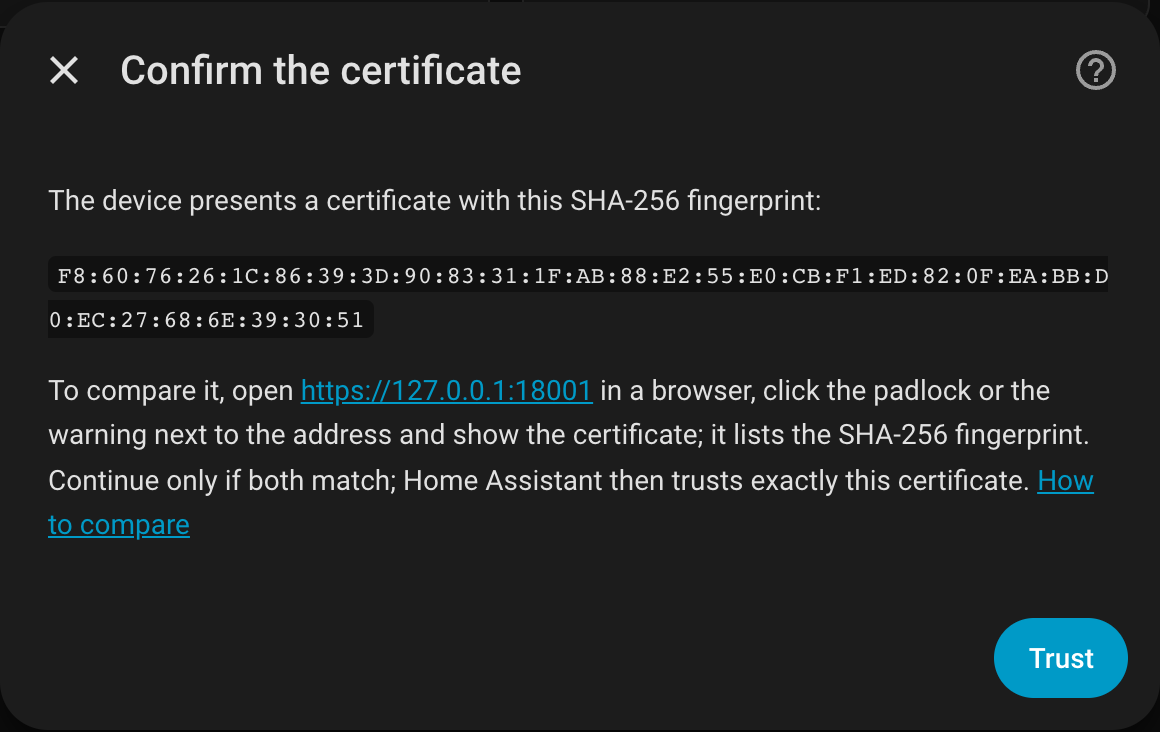

The certificate step with the fingerprint and how to compare it

Account

Use an SRM administrator account (SRM's Web API answers nothing else) without two-factor authentication; Home Assistant cannot enter codes unattended. A dedicated account for Home Assistant is best: it shows up on its own in SRM's logs, and you can change its password without touching anything else.

SRM keeps one session per account and session name; a second login under the same name ends the first. Each Home Assistant installation therefore logs in under a name of its own (HomeAssistant- and the start of its instance ID), so a test and a production instance can share the account.

Device trackers

A tracker is home while the client is on the network. Each router offers the clients it knows, and keeps the trackers of the ones you choose. An access point next to a router leaves its clients to the router; its setup and its options offer a menu to choose trackers of its own instead. An access point whose clients no configured router knows (a network of its own) offers them right away. So two routers of separate networks, for example one for work and one at home, each keep their own trackers. A client known to several devices gets one tracker, from the first device that wants it, routers first.

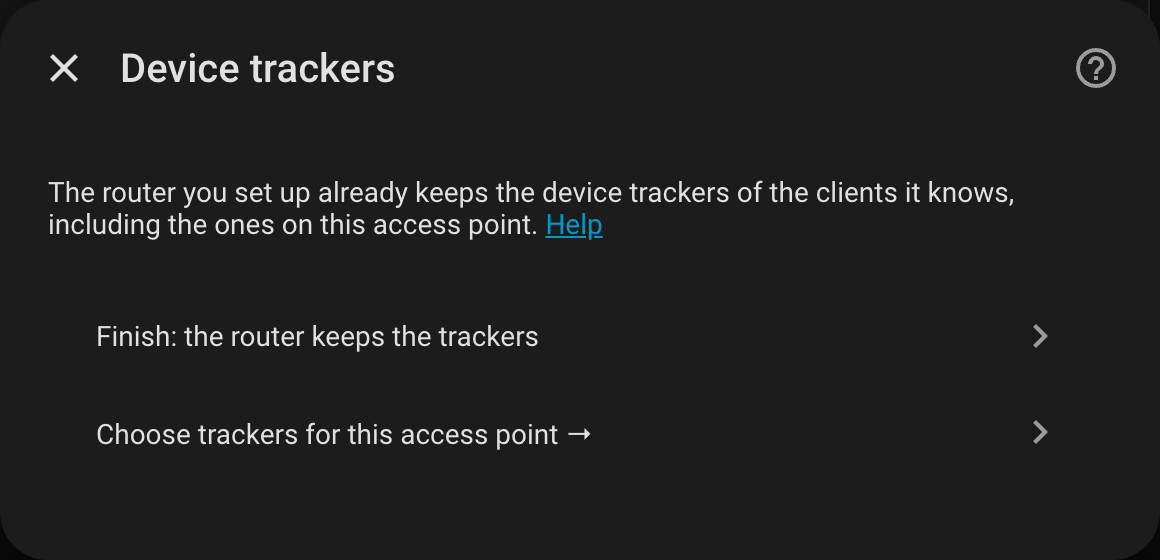

An access point next to a router: finish, or choose trackers for it

The list to choose from shows the clients that matter: those online now (●), those with a name given in SRM, those with a DHCP lease or reservation, and those Home Assistant saw online in the last 30 days (with the date, ○). SRM keeps every client it ever saw, so Show all known clients lists the rest as well. Track all clients covers exactly the clients that matter, and new ones as they appear; one gone for good does not get a tracker.

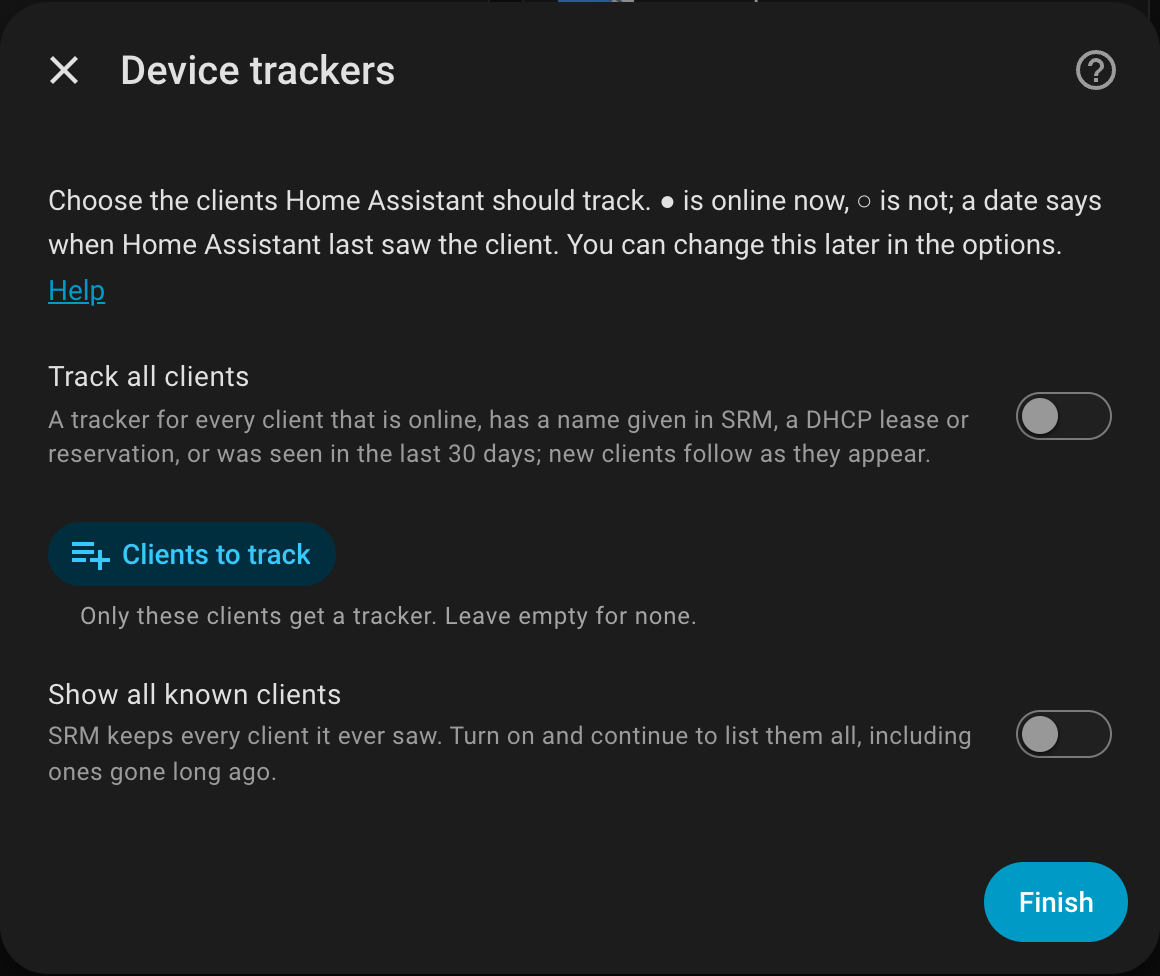

The tracker step: track all, choose clients, show all known clients

A tracker is named after the name given in SRM, wherever it is set; otherwise after the name the client reports. Its attributes:

Attribute Meaning
connected_to the router or access point the client uses
connection wifi or ethernet
radio, signal for Wi-Fi clients
located_by wifi_list (the device's own Wi-Fi list, reliable) or device_list (a client list, which can lag behind)
ip6_address an IPv6 address of the client other than link-local, when SRM knows one (often not: SRM lists IPv6 for some clients only)

A client counts as away only after it was missing for the time until away (3 minutes by default): SRM marks idle wired clients offline for a minute now and then. When the router or access point a client was last on cannot be read, its tracker keeps that location for up to 10 minutes instead of moving the client to the router. Wired clients behind an access point's LAN port are shown on the router, because access points do not report them.

Trackers also help Home Assistant discover devices: integrations that recognise a device by its host name or address (a PlayStation, a printer, ...) offer themselves under Discovered.

Options

Settings, Devices & services, Synology SRM Router, the gear icon:

Option Default Meaning
Track all clients off Trackers for the clients that matter, and new ones as they appear.
Clients to track none These clients get a tracker, whether or not they matter.
Time until away 180 s How long a client must be missing before its tracker says away.
Fast polling interval 30 s Clients, Wi-Fi, load and WAN.
Slow polling interval 300 s System information (firmware, last boot) and DHCP.

Each update reads several values from the device; SRM devices answer slowly (about half a second per call on an RT2600ac), so intervals much below the defaults mostly add load. Trackers of clients you no longer choose are removed (with Track all clients, none are removed); a client's device can also be deleted by hand.

Coming from the built-in Synology SRM integration

Home Assistant's built-in synology_srm device tracker is set up in configuration.yaml. Once this integration runs, remove its block:

device_tracker:
  - platform: synology_srm   # remove this entry

and restart Home Assistant. Its entries in known_devices.yaml can go as well. If you keep both for a while, give this integration an SRM account of its own: the built-in tracker logs in every 12 seconds and never logs out, and two programs with one account can end each other's sessions.

Changing the connection or signing in again

  • Reconfigure changes host, port, HTTPS and certificate checking. A certificate that differs from the trusted one is shown for you to confirm first.
  • Adding a device that is already set up, at a new address, updates the address of the existing entry instead.
  • When the password changed, or the device presents a new certificate, Home Assistant asks you to sign in again and shows the new fingerprint for you to confirm.
